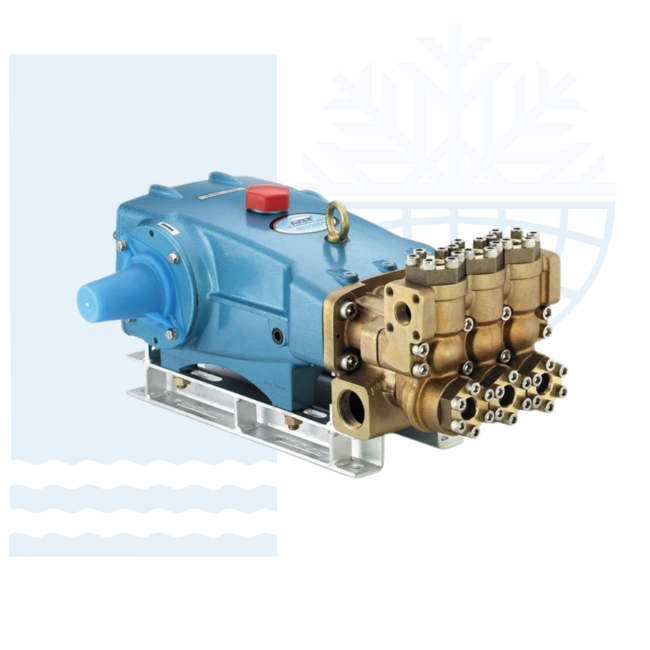

Cat Pumps 35 frame plunger pump 3507

Cat Pumps 3507

The Cat Pumps 3507 is a high-quality industrial plunger pump from the reliable 35-frame series. This pump is designed for applications where durability, performance, and continuous operation are crucial. The 3507 delivers a flow rate of up to 38 l/min at pressures up to 345 bar (5000 psi), making it suitable for demanding high-pressure processes in industries such as manufacturing, cleaning, and process water treatment.

Key Features of the Cat Pumps 3507:

• Durable construction with a nickel-aluminum bronze pump head and ceramic plungers for maximum longevity.

• Triplex plunger design offers efficient, pulsation-reducing operation.

• Fully lubricated V-packings and low-pressure seals, cooled by the pumped fluid, extend seal life.

• Suitable for continuous operation thanks to robust drive components such as forged connecting rods.

• Modular design, easy to maintain and adaptable with alternative sealing materials like FPM, EPDM, or FFKM for higher temperatures or chemical resistance.

• Version with flush connection (3507CHS) available for low lubrication or high-temperature applications.

Technical Specifications Cat Pumps 3507:

Model Variants:

• 3507HS – Standard model with NBR seals

• 3507CHS – Equipped with external flush connections for heavy-duty applications

Accessories and maintenance kits for Cat Pumps 3507:

To keep your pump in top condition, we offer a wide range of original pump heads, overhaul kits, and various sealing options for different operating conditions. In addition, we provide related products such as pressure regulators, drive components, and complete pump systems. This makes it easy to assemble a reliable and efficient complete solution for your application.

Documents Cat Pumps 3507

Cat Pumps Datasheet - Model 3507, 3517, 3507C, 3517C - Pijttersen

Cat Pumps Service Manual - 35PFR Plunger Pump (3507 & 3517) - Pijttersen

Cat Pumps - Installation guidelines for high-pressure pumps - Pijttersen

Cat Pumps - Warnings and cautions for HP-pumps - Pijttersen
