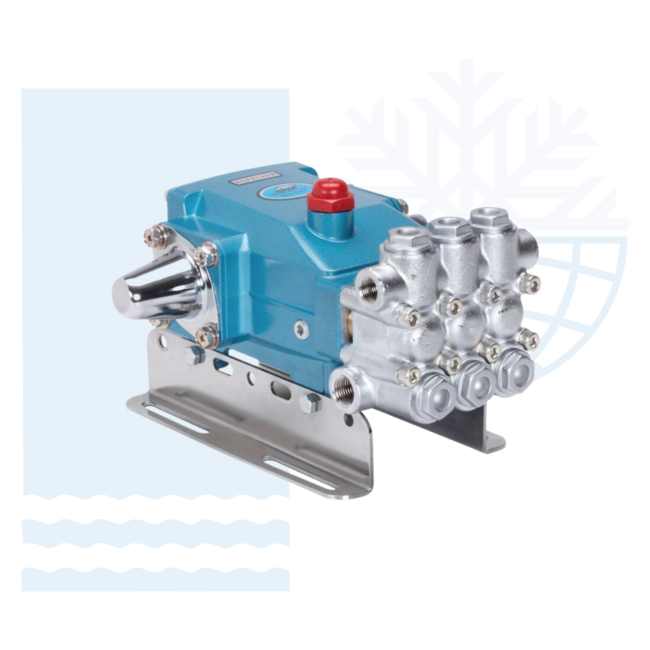

Cat Pumps 5CP Plunger Pump – 5CP2120W

Cat Pumps 5CP Plunger Pump – 5CP2120W
In stock

Material: Brass
Flow: 4.0 gpm / 15 lpm
Pressure: 100 – 2500 psi / 6.9 – 172 bar
Speed: 950 rpm
Inlet Pressure Range: Flooded to 60 psi / Flooded to 4.1 bar
Max. medium temp.: 160°F / 71°C Read more..

1-2 days
  • Large own stock

  • Outstanding service

  • Fast delivery (1-2 days)

  • Thé Cat Pumps-dealer since 1978

Product description

Cat Pumps 5CP2120W

The Cat Pumps 5CP2120W is manufactured from high-quality materials, including chrome-plated brass. With a flow rate of 15.5 liters per minute and a pressure range of 7 to 172 bar, this pump can meet the demands of various industrial processes. The 950 rpm speed and maximum media temperature of 71°C make this pump suitable for a wide range of operating conditions.

Thanks to the user-friendly design with plug-in seal cases and interchangeable valve assemblies, the 5CP2120 is easy and quick to maintain, minimizing downtime and maximizing the efficiency of your processes.

Cat Pumps 5CP2120W Specifications

Material: Brass
Flow rate: 15 liters per minute
Pressure range: 7-172 bar
Speed: 950 rpm
Inlet pressure: -0.35 to 4.1 bar
Max. Medium Temperature: 71°C

Additional information

This pump is equipped with NBR seals and O-rings as standard and is available in the following versions. The pump can be equipped with alternative seals, depending on the chemical composition of the medium to be pumped or the working temperature.

TYPEDESCRIPTIONMAX. TEMP.SUFFIX
NBRMedium Nitrile (Buna-N) seals and O-Rings160°F (71°C)-
FPMFluorocarbon (Viton®) seals and O-Rings, chemical resistance180°F (82°C).0110
EPDMEthylene Propylene Diene Monomer seals and O-Rings160°F (71°C).0220
HTHigh-temperature high pressure seals180°F (88°C).3000
STHTHigh-temperature high pressure seals, special Teflon® low-pressure seals, NBR O-Rings190°F (88°C).3400
 High-temperature high pressure seals, special Teflon® low-pressure seals, FPM O-Rings190°F (88°C).3410
PTFEPure Polytetrafluoroethylene (Teflon®) Seals and Buna-N O-Rings190°F (88°C).0700
 Pure Polytetrafluoroethylene (Teflon®) Seals and FPM O-Rings200°F (93°C).0710
IPFEI-Perfluoroelastomer (Teflon®) Seals and Isolast O-Rings200°F (93°C).0770
ST4Special blend PTFE high and low pressure seals, Buna-N O-Rings190°F (88°C).4400
 Special blend PTFE high and low pressure seals, FPM O-Rings200°F (93°C).4410
NBRSBuna-N silicone free seals and O-Rings160°F (71°C).6000

FPM = Fluorocarbon, EPDM = Ethylene Propylene Diene Monomer, HT = High Temp (EPDM Alternative), STHT = Special PTFE High Temperature, PTFE = Pure Polytetrafluoroethylene, IPFE = I-Perfluoroelastomer, ST4 = Special PTFE 4, NBR = Medium Nitrile (Buna-N), NBRS = Buna-N silicon free seals and O-Rings.
Viton® and Teflon® are registered trademarks of DuPont Dow Elastomers.



Documents

Cat Pumps Datasheet - Models 5CP2120W, 5CP2140WCS, 5CP2150W, 5CP2120B, 5CP2140BCS, 5CP2150B - Pijttersen
Cat Pumps Service Manual - CP Plunger Pump - Pijttersen
Cat Pumps - Installation guidelines for high-pressure pumps - Pijttersen
Cat Pumps - Warnings and cautions for HP-pumps - Pijttersen

Specifications

Article number
5CP2120
SKU
5CP2120
Flow
4.0 gpm / 15 lpm
Pressure Range
100 — 2500 psi / 6.9 — 172 bar
Material Manifold
Brass
Speed
950 rpm
Max. Liquid Temp. (NBR)
160°F / 71°C

Specifications

Article number
5CP2120
SKU
5CP2120
Flow
4.0 gpm / 15 lpm
Pressure Range
100 — 2500 psi / 6.9 — 172 bar
Material Manifold
Brass
Speed
950 rpm
Max. Liquid Temp. (NBR)
160°F / 71°C
